Pure building titanium
Titanium super AP from Kobe Steel

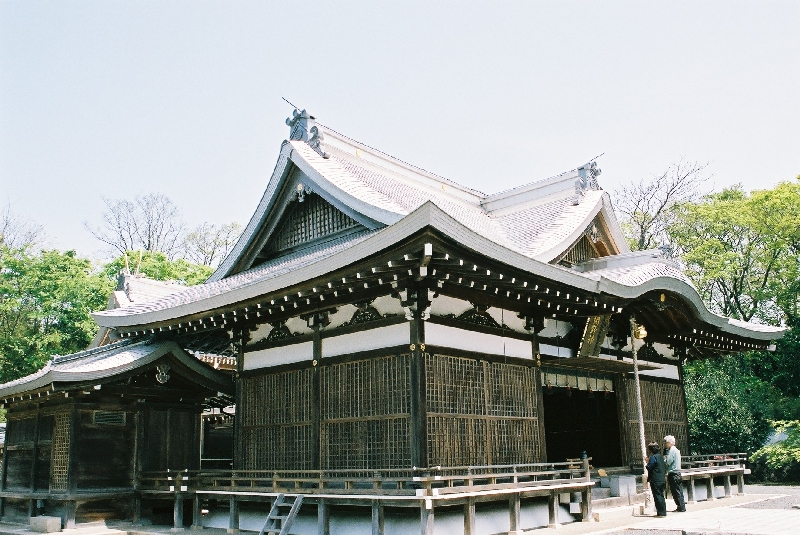

Titanium stripsFukusen-ji Tenple
Standard: JIS H4600 Pure titanium KS40S (JIS category 1) Material production (Low polish AP)
Producer: Kobe Steel, Ltd.
Certificate of incombustibility: Approved by Minister of Land, Infrastructure and Transport NM-8596
Features of Super AP
Titanium is resistant to corrosion meaning that it will never corrode in natural environments and is the perfect roofing material for the harsh conditions in coastal and hot spring regions. Further, it has many benefits including its lightness (half the weight of copper), its low heat expansion (half that of stainless steel), and its minimal effect on the environment due to low levels of elution. Super AP from Kobe Steel takes these features of titanium to an even higher level. Details of each of these are below.
Color change
Titanium changes color through the abnormal growth of oxidized film on the surface. Controlling this abnormal growth requires the surface to be clean. Super AP by Kobe Steel seldom changes color due to the dirty layers being completely removed.
A solid color with less variation in brilliance
Metal sheets can appear more black or white due to surface brilliance. This variation is due to the roughness of the surface. At Kobe Steelworks they use a unique facility to make the metal as rough as a crystal grain, controlling this brilliance.
Undistorted and soft titanium
Super AP by Kobe Steel is made into fine grains the size of crystal grains through its quick annealing, making the titanium ideal for roofing. It has few blemishes and is soft.
Producer: Kobe Steel, Ltd.
Certificate of incombustibility: Approved by Minister of Land, Infrastructure and Transport NM-8596
Features of Super AP
Titanium is resistant to corrosion meaning that it will never corrode in natural environments and is the perfect roofing material for the harsh conditions in coastal and hot spring regions. Further, it has many benefits including its lightness (half the weight of copper), its low heat expansion (half that of stainless steel), and its minimal effect on the environment due to low levels of elution. Super AP from Kobe Steel takes these features of titanium to an even higher level. Details of each of these are below.
Color change
Titanium changes color through the abnormal growth of oxidized film on the surface. Controlling this abnormal growth requires the surface to be clean. Super AP by Kobe Steel seldom changes color due to the dirty layers being completely removed.
A solid color with less variation in brilliance
Metal sheets can appear more black or white due to surface brilliance. This variation is due to the roughness of the surface. At Kobe Steelworks they use a unique facility to make the metal as rough as a crystal grain, controlling this brilliance.
Undistorted and soft titanium
Super AP by Kobe Steel is made into fine grains the size of crystal grains through its quick annealing, making the titanium ideal for roofing. It has few blemishes and is soft.
Physical properties of Titanium and other materials | ||||||
Pure titanium | Iron | SUS304 | Aluminum | Copper | Glass | |
Relative weight | 4.51 | 7.9 | 8.0 | 2.7 | 8.9 | 2.4 |
Melting point(℃) | 1668 | 1530 | 1400 | 660 | 1083 | 800 |
Young’s modulus(GPa) | 106 | 192 | 199 | 69 | 117 | 98 |
Electric conduction(compared to Cu) | 3.1 | 18.0 | 2.4 | 64 | 100 | - |
Expansion factor(x10⁻⁶/℃) | 8.4 | 12 | 17 | 23 | 17 | 9 |
Relative heat(J/Kg・K) | 520 | 460 | 500 | 880 | 390 | 1050 |
Properties of Titanium | |
Property | Example |
Outstanding corrosion resistance | Complete resistance to sea water |
Light | 60% lighter than stainless steel |
Hardly any heat expansion | 50% less expansion than stainless steel |
High electric conductivity | 30 times as conductive as copper |
Incombustibility | Certificate of Incombustibility (Number NM-8596) |
Designability | Color change achieved through anodic oxidation |
Reference: Kobe Steel titanium catalogue
Titanium catalogueTitanium catalogue_pdf(891KB)
Titanium stock list
Titanium stock list | ||||
Thickness (mm) | Category | Width (mm) | Length (mm) | Weight of 1m(Kg/m) |
0.30 | TR270 | 455 | COIL | 0.62 |
914 | COIL | 1.24 | ||
0.40 | TR270 | 914 | COIL | 1.65 |
We may be missing the item of stock list. There also may be unforeseen changes to the content – we apologize for any inconvenience.
