In the past most flat seam roofing was made of soft materials such as copper sheets. This was carried out on site in seams and it was impossible to make attractive and safe flat seam roofing with the hard metals GL steel 0.4 and colored stainless steel 0.4mm. Quick Laying made flat seam roofing with hard metals possible. It has many benefits including its beautiful roofing style, high construction capabilities and reliability against heat expansion.

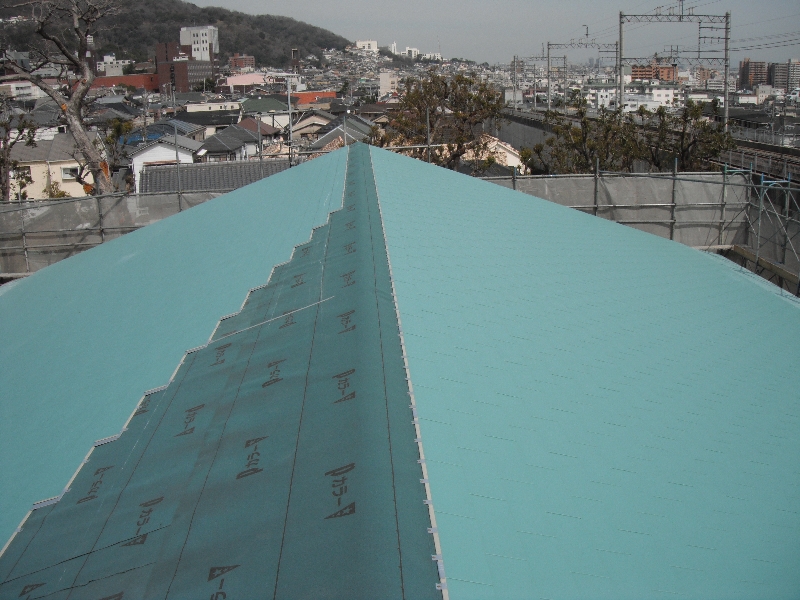

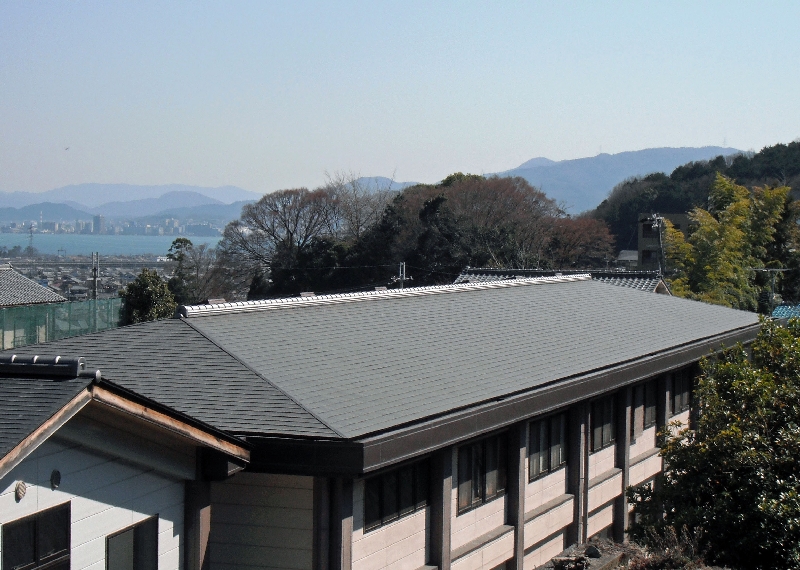

Galvalume steel sheetsHayabuki under construction

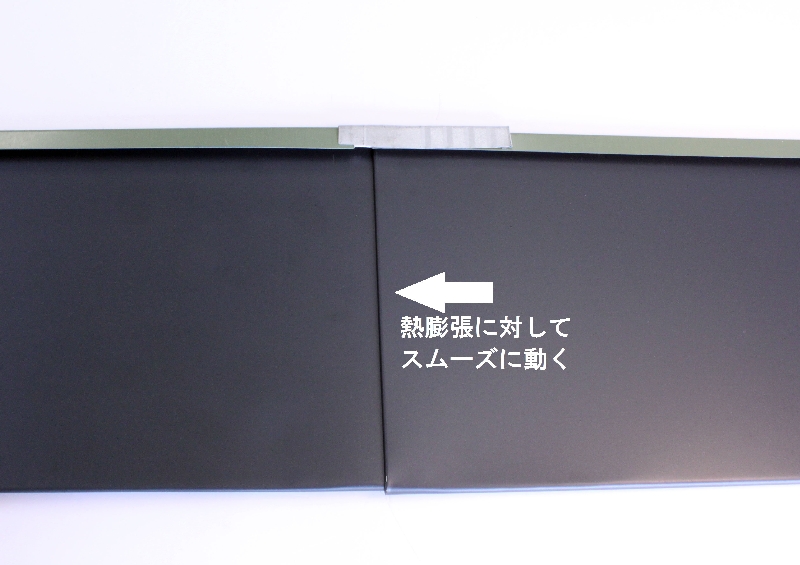

It absorbs expansions due to heat, keeping out warps
Sheet joints have expansion joint structure so there is no heat expansion warping. It never loses the beauty of flat seam roofing.

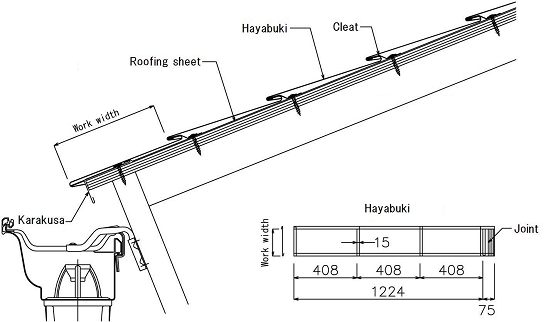

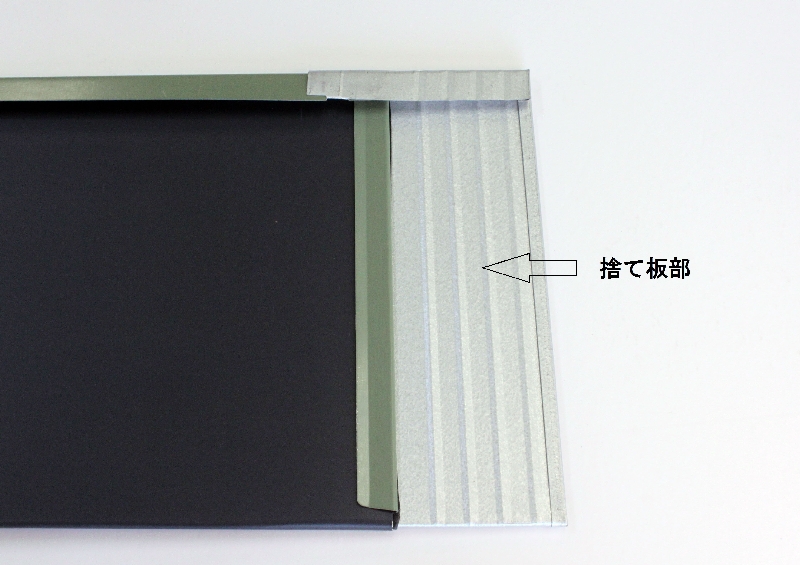

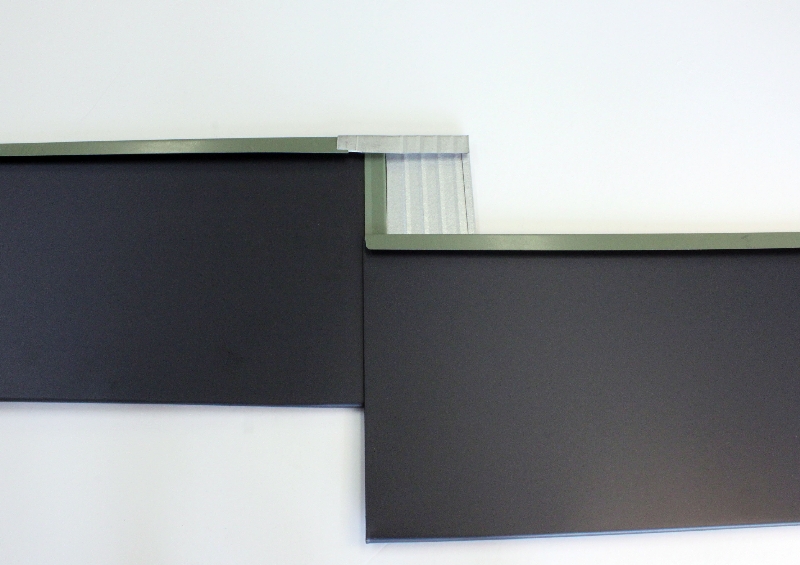

Joint structure

Difficult to break R seams
Some old copper roofing have cracks in their vertical seams. This is thought to occur due to a strong force applying to the inside of the work through the sharp processing　effect in the ends. This leads to toughening of the work and the area affected starts to split. To avoid this, all of our metal roofing have R seams making it difficult for this toughening to occur.
A wide range of standards and materials
Working width (Measurements) 6 types available from 130mm to 251mm.
The normal materials are copper, copper sulfide, softened copper, titanium, colored stainless steel, and rub-resistant color GL. (For other materials, please contact us.)
Huge performance increases
We make our connecting seems cassette style which means they are easy to put together – just lay them. Huge performance increases and no damage to the roofing.
Point dividers packed in the set.
Point dividers are packaged in a set so they go straight to your site. Anyone can connect them quickly and easily so they greatly reduce the work time.
All 1299mm long
Each piece is short making them easy to transport and carry – the work only needs one person.

▲　Return to top of page

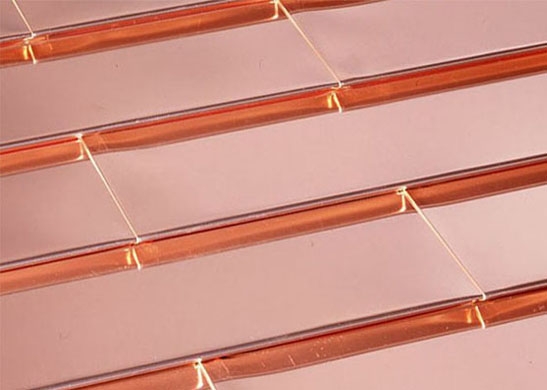

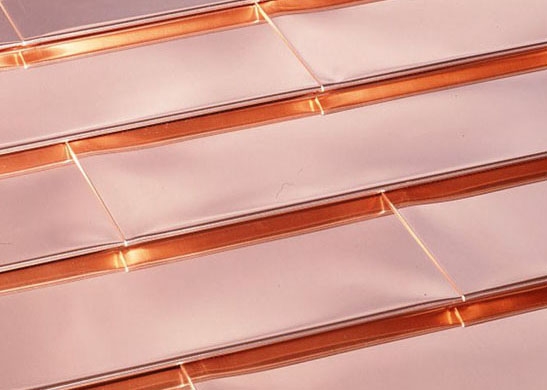

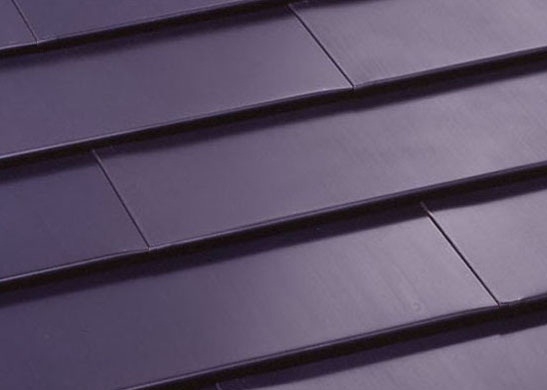

Copper , Copper sulfide , Coppersoftain,Titanium
Copper Copper sulfide CoppersoftainTitanium

Pre-painted stainless steel（NAS-coat）

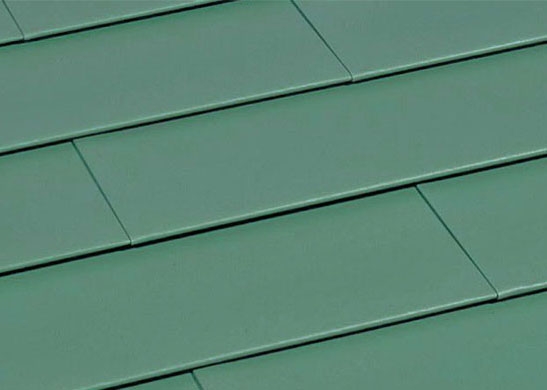

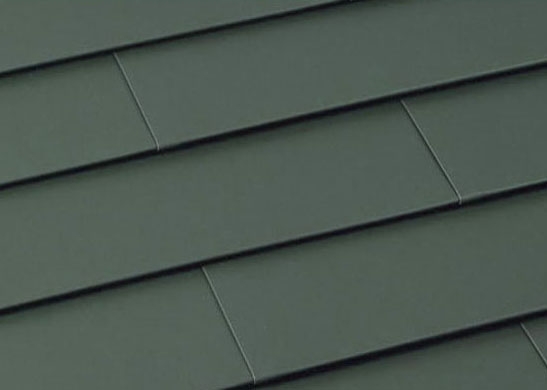

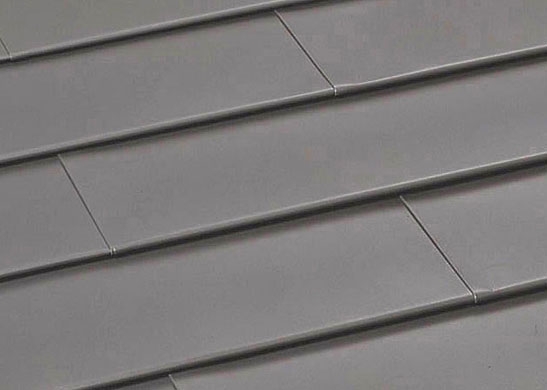

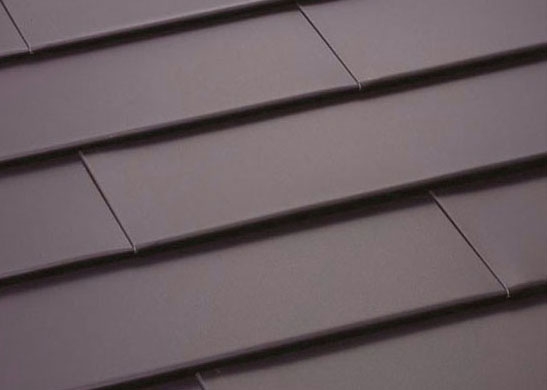

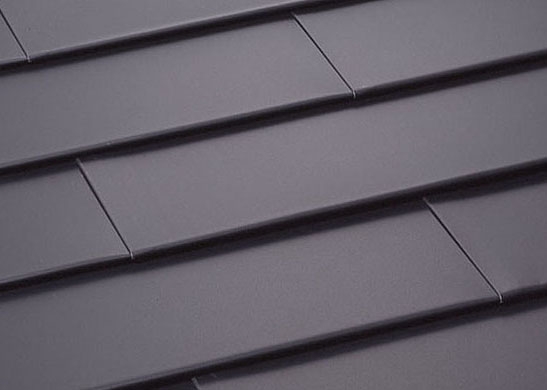

NAS-coat frosted blackNAS-coat frosted brownNAS-coat frosted grayNAS-coat frosted bluish green

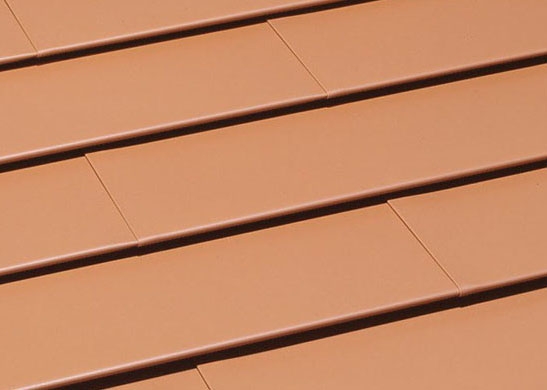

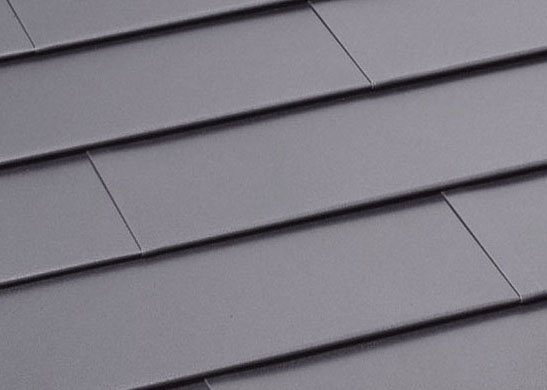

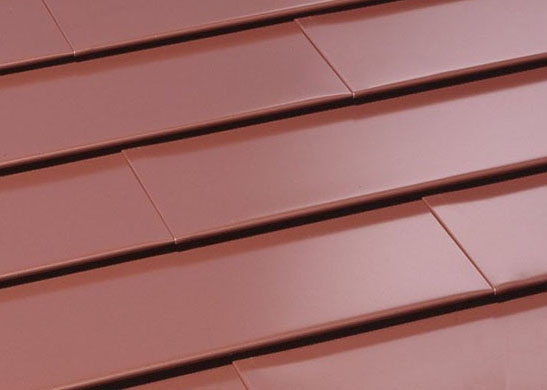

NAS-coat frosted greenNAS-coat copper brownNAS-coat camel brown NAS-coat metallic gray

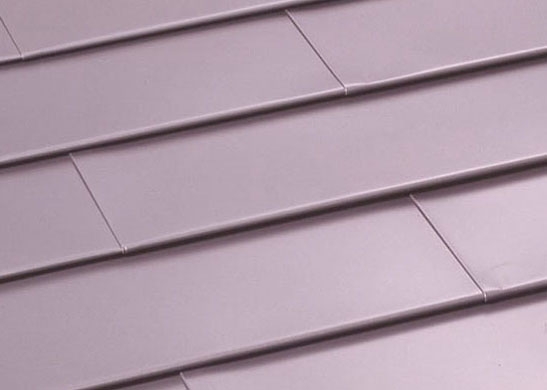

NAS-coat silver

Pre-painted galvalume steel (TAIMA color GL)

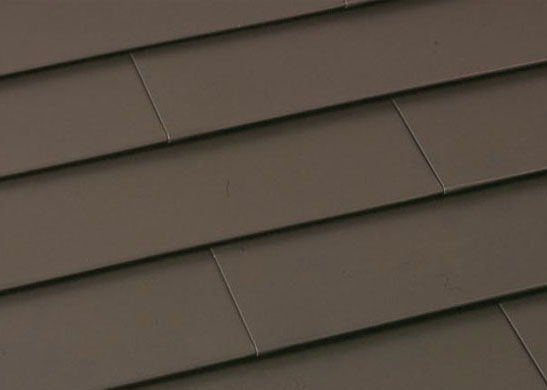

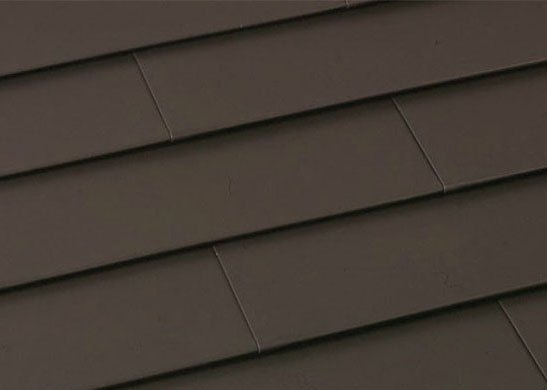

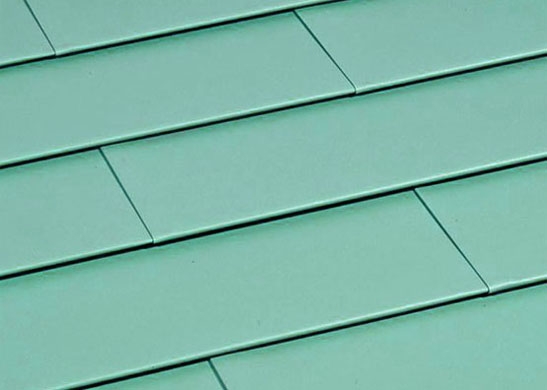

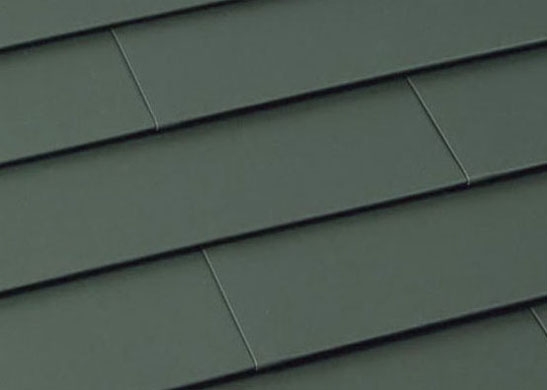

TAIMA green blue（NO517)TAIMA green（NO527)TAIMA pearl brown（NO538)TAIMA dark brown（NO539)

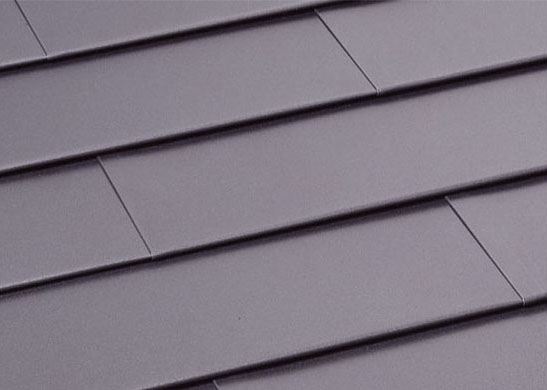

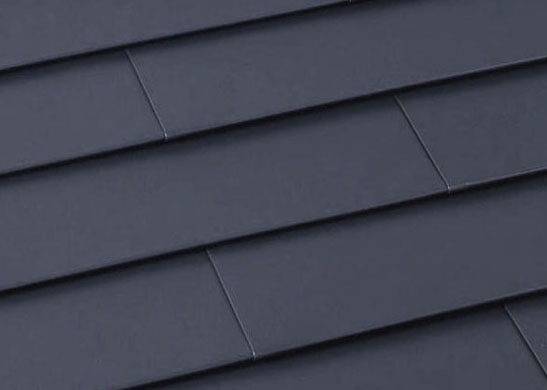

TAIMA black （NO540)TAIMA oxidized silver（NO570)

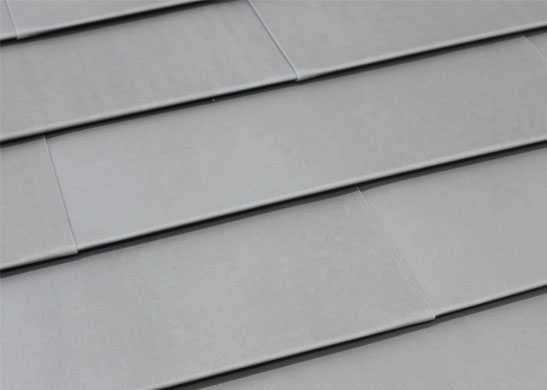

Toughten Z

The colors here are just guidelines and the actual color may vary.
For non-standard materials, please contact us.
NAS-coat is a colored stainless steel for buildings made by NYKClick here for the NAS-coat

Features of rub-resistant color GL
JIS G 3322　Certificate of incombustibility: NM-8697
1. Galvalume steel sheets with a strong film made of glass fiber, providing durability and weatherproofing.
2. This is a heat insulating material so it keeps the surface temperature of the roof low.

▲　Return to top of page

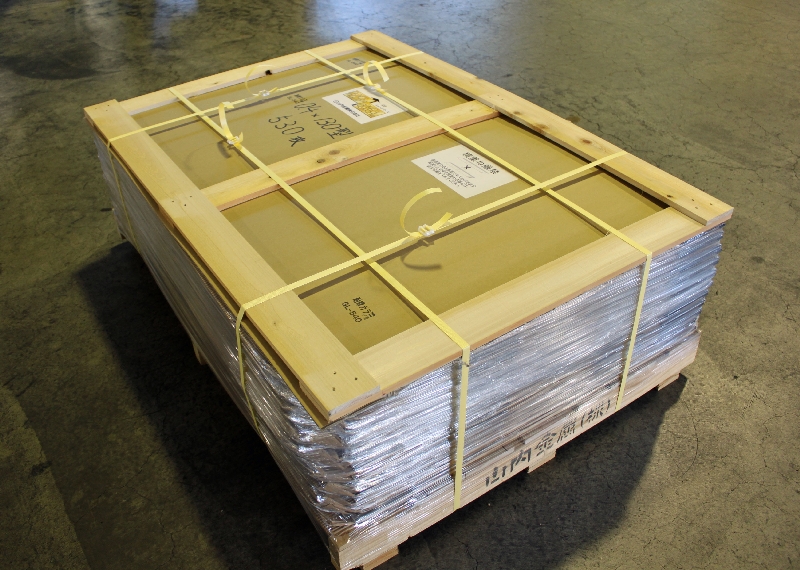

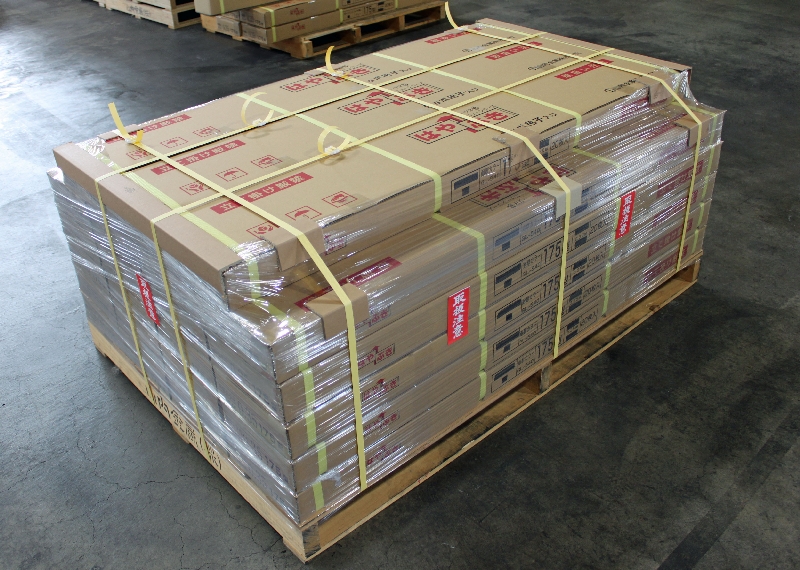

Hayabuki–packed in cardboard boxes(For the domestic market)Hayabuki simple packaging(For the domestic market)

Quick Laying packaging usually comes in 20 sheets per cardboard box (10 sheets for 250 type). We also provide simple packaging to reduce on-site waste.

Hayabuki CatalogHayabuki instruction manual
“Hayabuki” Catalog_pdf(3.6MB)
“Hayabuki” instruction manual_pdf(3.78MB)
“Hayabuki” standard working drawing_pdf(309KB)
“Hayabuki” standard working drawing_.dxf.zip(243KB)
